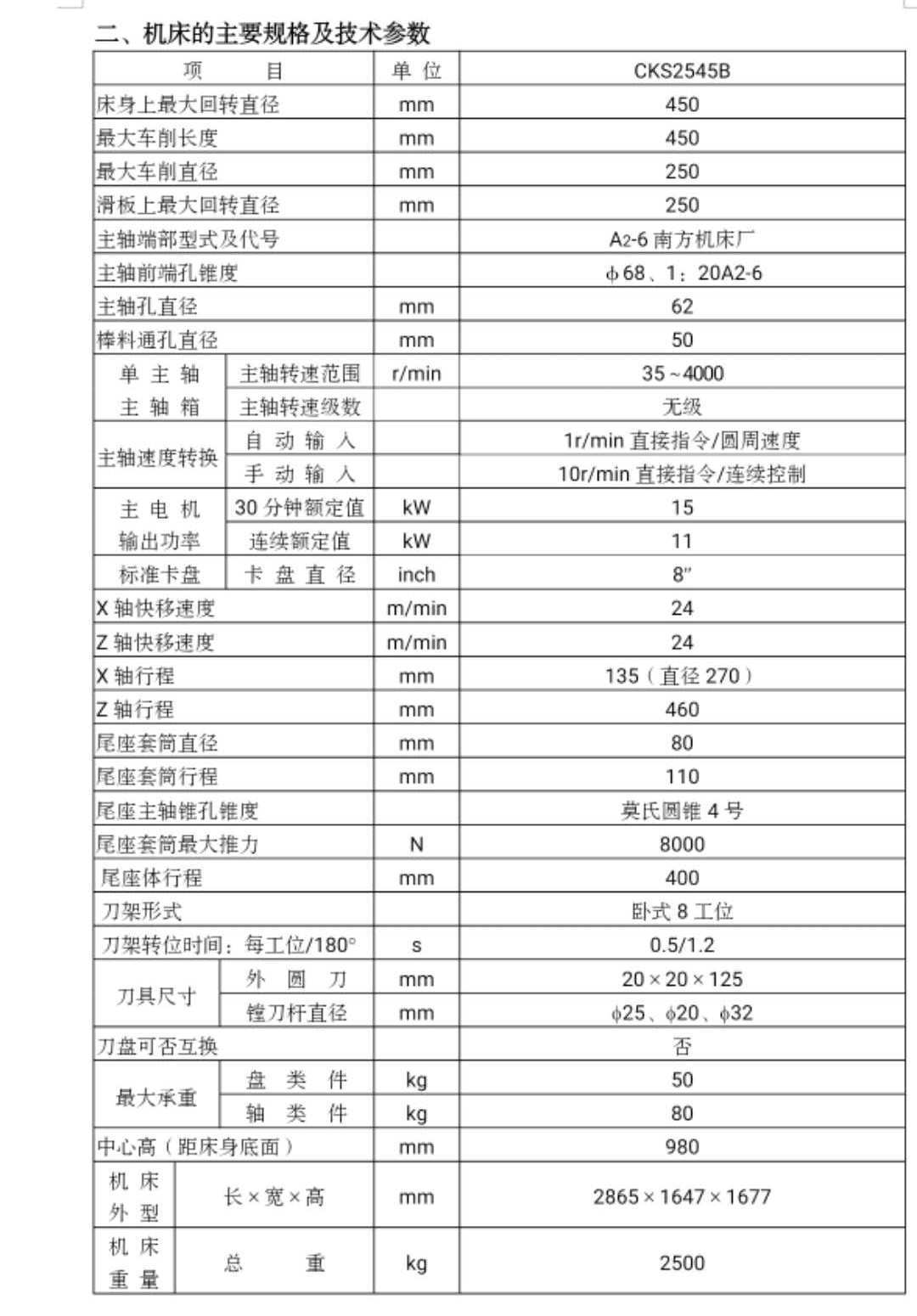

| CNC Machine Type | CNC Lathe | Article No. | / |

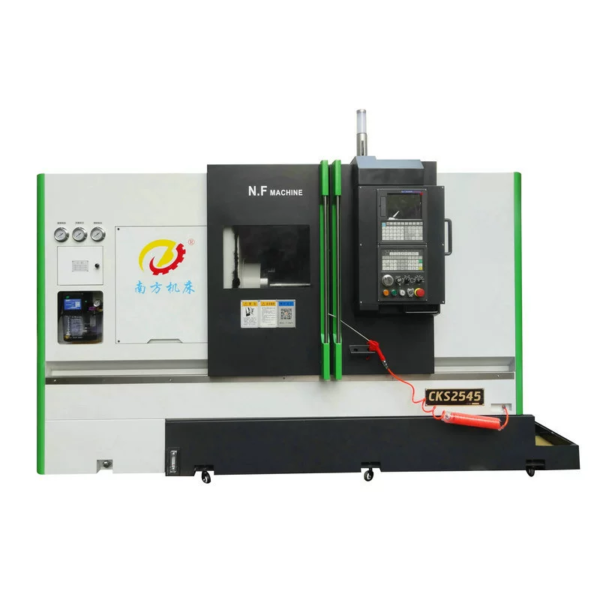

| Brand | Xinchao South Machine Tool | Model | CKS2545 |
| Power Supply Capacity | / | Max. Turning Length | 450 mm |
| Max. Cutting Diameter | 250 mm | Spindle Speed Range | 35~4000 (rpm) |
| Specification | 300/450/750 | Tool Capacity | 12-station |
| Machine Weight (Net / Gross) | 3400kg | Bed Layout Form | Horizontal flat bed (linear guideway) |
| Machine Overall Dimensions (L × W × H) | 2715 × 1647 ×1677 mm;2865 × 1647 ×1677 mm;3165 × 1647 ×1677 mm; | Chuck Specification | 6″ / 8″ |
| Main Motor Power | 11 (kw) | Motion Mode | Point-to-point control |
| Machining Size Range | 20*20*125 (mm) | Application | Casting |
| Number of Tools | / | Control Type | Open-loop control |
Computer Numerical Control
