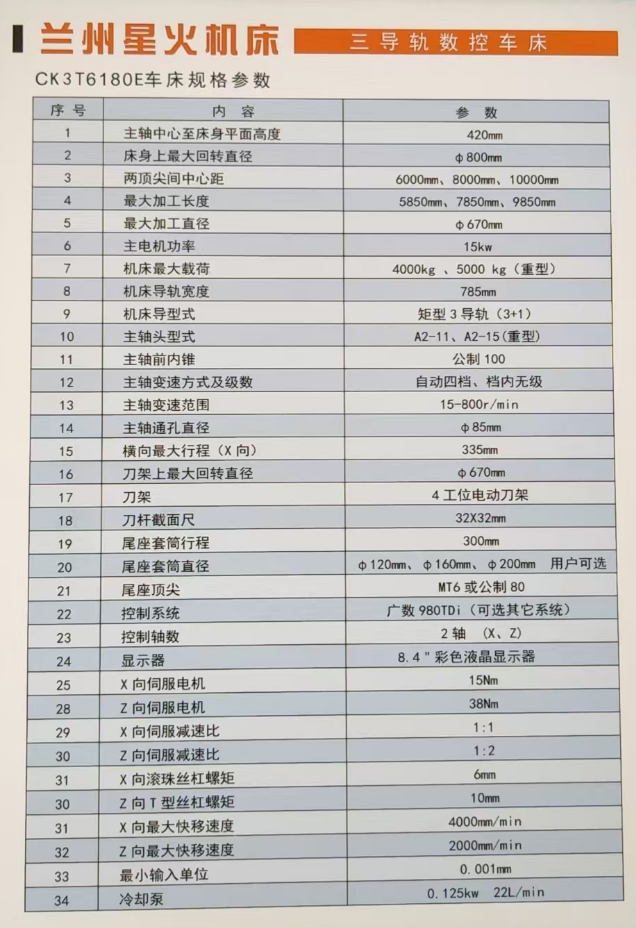

| CNC Machine Type | CNC Lathe | Article No. | / |

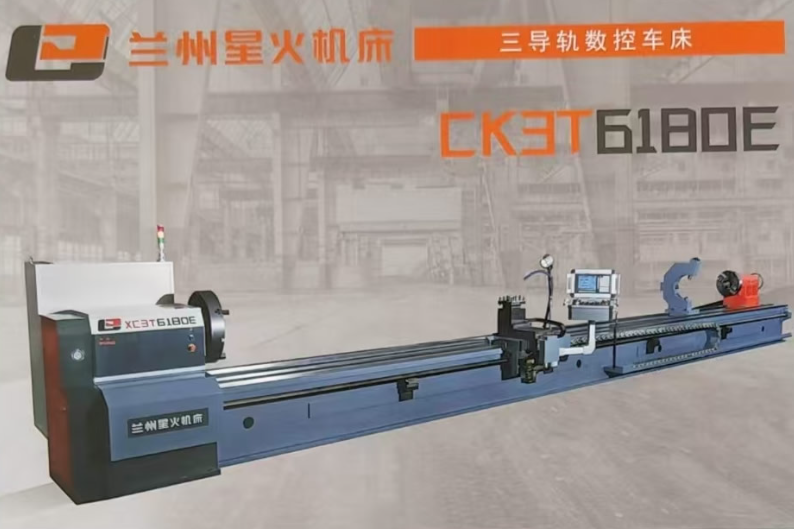

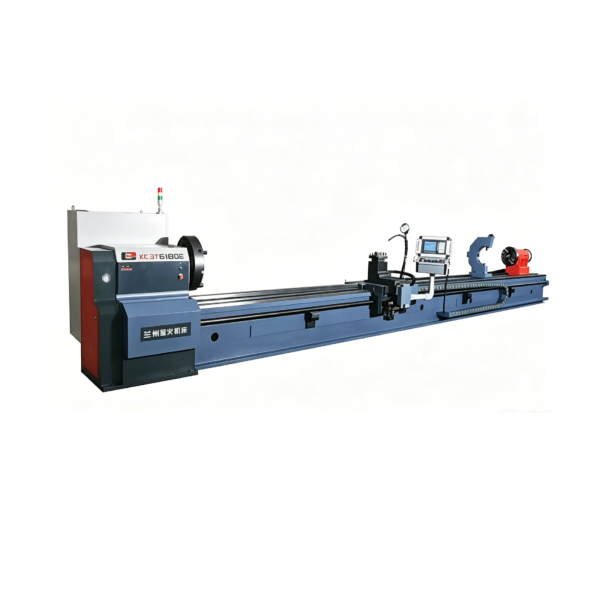

| Brand | Xinghuo Machine Tool | Model | CK3T6180E |
| Power Supply Capacity | / | Max. Turning Length | 5850mm / 7850mm / 9850mm |
| Max. Cutting Diameter | φ670mm | Spindle Speed Range | 15 ~ 800 r/min |
| Specification | / | Tool Capacity | 4-station electric turret |
| Machine Weight (Net / Gross) | Max. load capacity 4000–5000 kg (heavy-duty) | Bed Layout Form | / |
| Machine Overall Dimensions (L × W × H) | / | Chuck Specification | Spindle nose type A2-11 or A2-15 (heavy-duty) |
| Main Motor Power | 15KW | Motion Mode | CNC control (2-axis simultaneous: X, Z) |
| Machining Size Range | Max. turning length 5850–9850 mm; Max. turning diameter φ670 mm | Application | General-purpose machining |
| Number of Tools | 4 | Control Type | CNC system |
Note: All images are sourced from the official website of Lanzhou Spark Machine Tool Co., Ltd. http://www.lzjc.com.cn/new.asp?cl=1|7|&id=233
