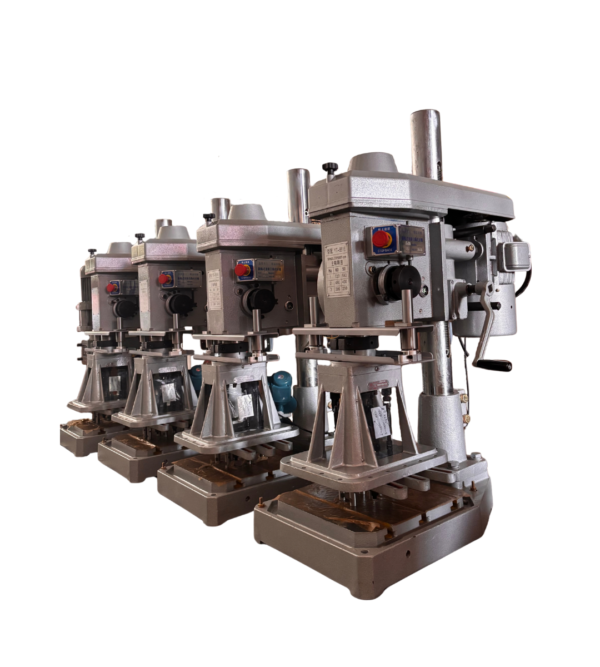

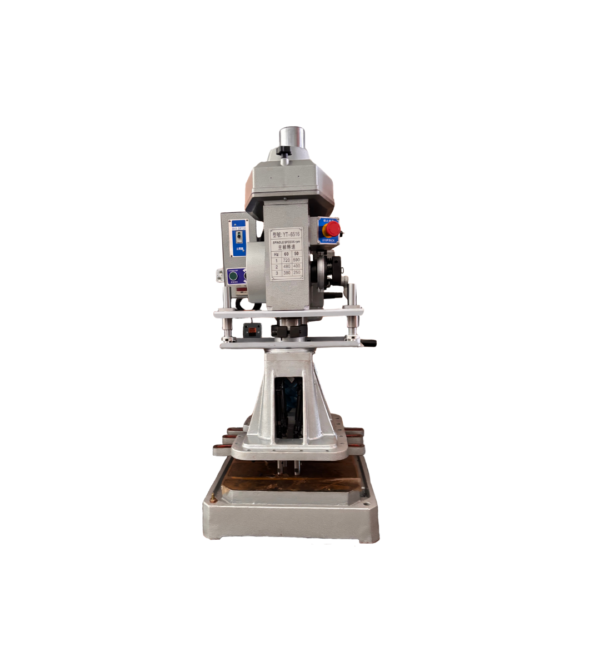

| Brand | Feihua Machine Tool | Type | Dual-servo Drilling and Tapping Integrated Machine |
| Model | 74 Power Head Complete Machine | Max. Tapping Diameter (Steel) | M8x10mm |
| Tapping Diameter (Copper/Aluminum) | M12mm | Distance from Spindle Centerline to Column Surface | 190mm |
| Max. Distance from Spindle End Face to Base Worktable Surface | 610mm | Worktable Size (L × W) | 250x280mm |
| Main Motor | Servo, 0–3000 rpm, Power: 1.8 kW | Feed Servo Motor | 0.75KW |
| Overall Dimensions | 600x700x1000mm |
