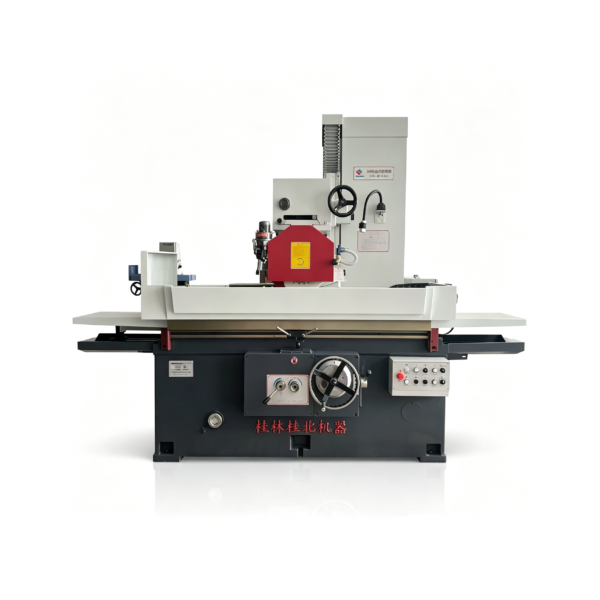

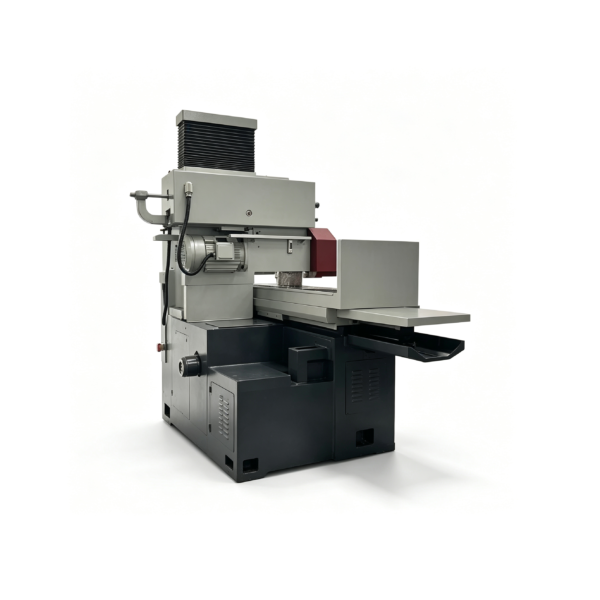

| Type | Horizontal spindle surface grinding machine (with rectangular table) | Model | M7140Y |
| Brand | Guilin Guibei Machine Tool | Weight | Approx. 3750 kg |
| Main Motor Power | 7.5 kW | Overall Dimensions (L × W × H) | 3000 × 1782 × 2250 mm |
| Surface Roughness | Ra 0.63 μm | Grinding Wheel Speed | 1440 r/min (wheel size: Φ400 × 50 × Φ203) |
| Max. Grinding Dimensions(L × W × H) | 400 × 1000 × 400 mm | Control Type | Manual control with rapid lifting/lowering of grinding head (semi‑automatic) |
| Applicable Scope | General surface grinding of metal parts | Applicable Industries | General purpose |
| Workpiece | Flat metal workpieces | Product Status | Brand new |
| Grinding Type | Surface grinding (horizontal spindle) | Worktable Size (L × W) | 1000 ×400 mm |
| Machinable Materials | Steel, cast iron, non-ferrous metals, etc. | Machining Applications | Surface grinding, precision surface machining of parts |
Grinder
