| Brand | Yingpai | Type | Automatic Tool Grinder |
| Model: | ZD-X20S | Power Supply | 220V / 50Hz |
| Rated Power | 1500W | Spindle Speed | 3000 rpm |
| Overall Dimensions (L × W × H) | 862 × 788 × 1435 mm | Net Weight | 180 kg |
| Grinding Wheel Specification | A φ124×11 / B φ124×11 / C φ124×10 / D φ124×5.50 | Applicable Tools | Plain end mills, ball end mills, radius end mills, drills, chamfering tools, center drills, corncob end mills (roughing end mills) |
| Control System | PLC control with servo motors and operator display panel | Cooling System | Standard cooling unit |
| Wheel Type | Diamond (SDC) / CBN wheels (optional based on workpiece material) |

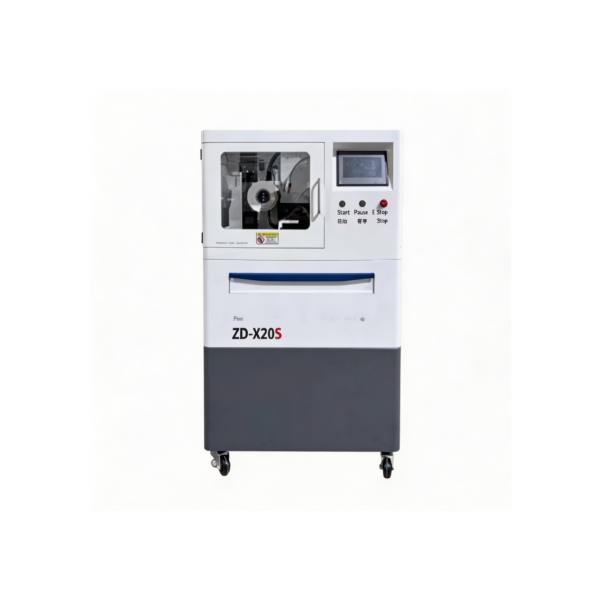

Automatic Tool Grinder
